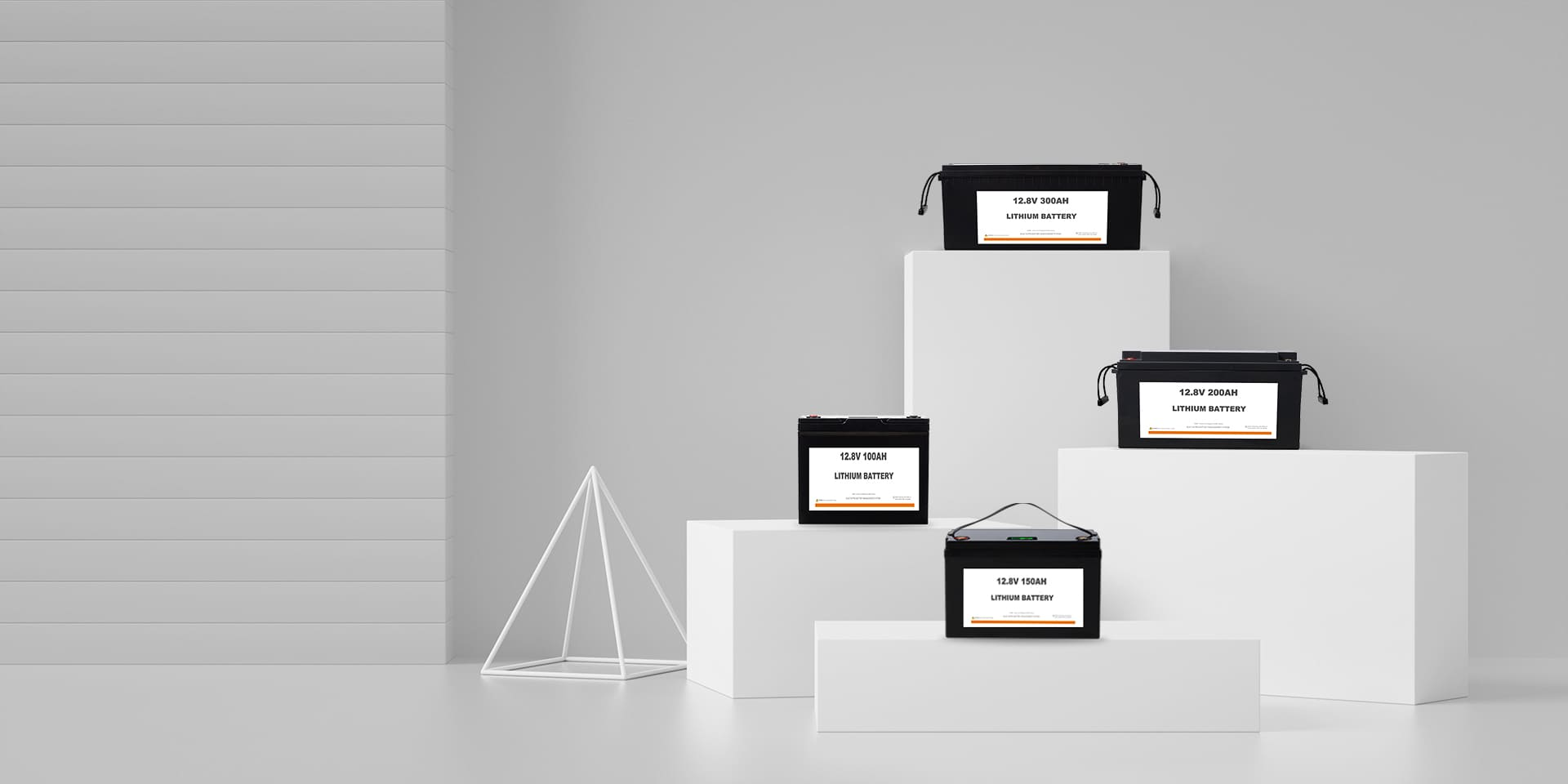

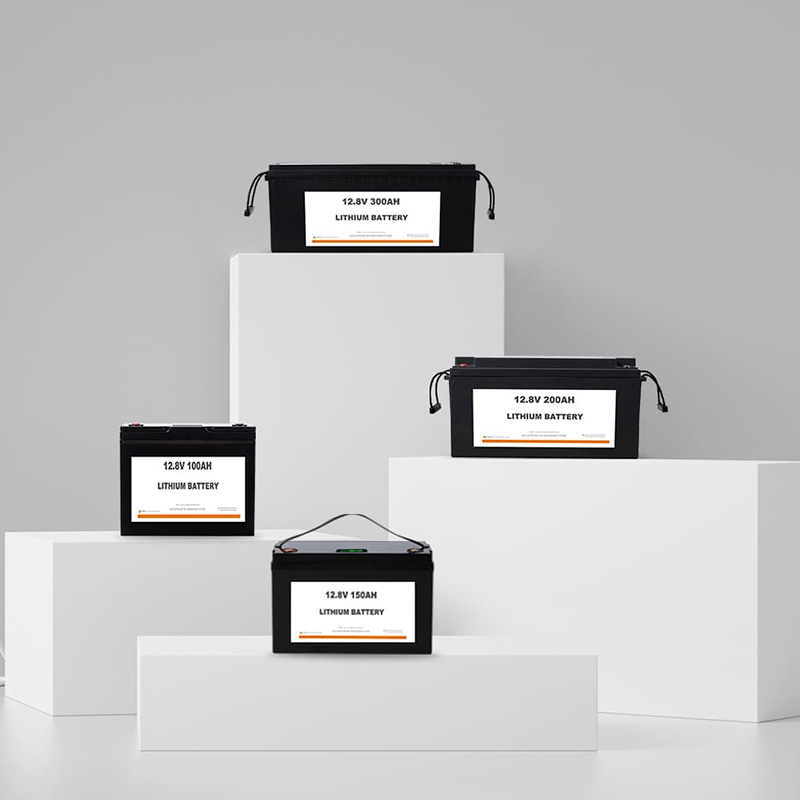

Powerblock 12.8V Lithium Battery
Smaller Volume/Higher Efficiency/Higher Energy Density/Simple Installation Method. Poweblock series products can charge and discharge 1500 cycles efficiently to achieve stable energy output under high load.
Send Inquiry
Product Description
Smaller Volume/Higher Efficiency/Higher Energy Density/Simple Installation Method.
Poweblock series products can charge and discharge 1500 cycles efficiently to achieve stable energy output under high load.
| Battery Parameters | |
| Nominal Voltage | 12.8V |
| Cell Capacity | 100Ah/150Ah/200Ah/300Ah |
| Nominal Energy | 1280Wh/1920Wh/2560Wh/3840Wh |
| Discharge Voltage | 10V |
| Charge Voltage | 14.4V |
| Cont. Charge Current | 100A/150A |
| Max. Charge Current | 100A/150A |
| Cont. Discharge Current | 150A/200A |
| Max.Discharge Current | 150A/200A |
| Cont. Discharge DC Power | 1280W/1920W |
| Max.Discharge DC Power | 1280W/1920W/2560W |
| Operating Temperature |
0℃ ~ 45℃(Charge) -20℃ ~ 55℃(Discharge) |
| General Data | |
| Scalability | Communication, bluetooth, heating, display |
| DOD | 100% |
| Communication | NON |
| Cycle Life | 1500cycles 0.5c 80% 100%DOD 25°C |
| IP Grade | IP65 |
| Installation | Same as lead-acid battery |
| Dimension | 328*172*230mm/328*172*230mm/ 483*170*240mm/520*240*222mm |
| Weight | 11KG/14KG/21KG/29KG |
| Warranty | One Year |
UN38.3, IEC62619, CE
When the temperature < 0°C or > 45°C, the product performance is limited.
