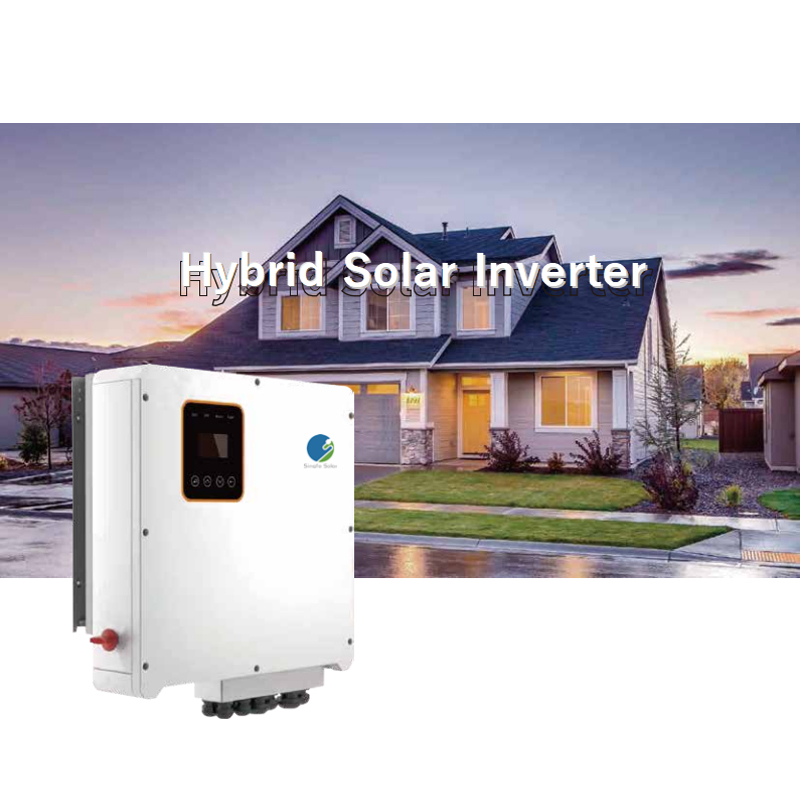

Hybrid Solar Inverter
Hybrid Solar Inverter is an inverter that integrates solar power generation and grid power supply.
Send Inquiry
Product Description
Solar Inverter
Hybrid Solar Inverter
Features:
· Support high-power components.
· Mainstream battery automatic matching.
· Support full power discharge, automatic battery
· Charge and discharge management.
Technical Data:
| General Data | ||||||||||
| Model | SF-KH3 | SF-6KH3-P | SF-8KH3 | 5F-8KH3-P | SF-10KH3 | SF-10KH3-P | SF-12KH3 | SF-12KH3-P | R15KH3 | SF-15KH3 |
| Ingress Protection | IP65 | |||||||||
| Operating Temperature Range (℃) | -25～60 | |||||||||
| Relative Humidity | 0-100% | |||||||||
| Operating Altitude (m) | 4,000 (Derating above 2,000 ) | |||||||||
| Dimensions W*H*D (mm) | 530*560*220 | |||||||||
| Weight (kg) | 30 | 30 | 31 | 31 | 31 | 31 | 33 | 33 | 34 | 34 |
| Cooling | Natural | |||||||||
| Noise Emission (dB) | ≤25 | |||||||||
| Installation | Wall Mounted | |||||||||
| EMC | IEC/EN 61000-6-1:2019, IEC/EN 61000-6-2:2019,IEC/EN 61000-6-3:2021,IEN/EN 61000-6-4:2019. IEC/EN 61000-3-2:2019/A1:2021,EN61000-3-3:2013/A2:2021,IEC/EN61000-3-11:2019,EN61000-3-12:2011 |
|||||||||
| Grid Regulation | Europe: EN 50549-1:2019/AC:2019, Poland:EN50549-1:2019/Rfg:2016/NC Rfg:2018/PTPiREE:2021, Germany:VDE-AR-N 4105:2018 /DIN VDE V 0124-100(VDE V 0124-100):2020, South Africa:NRS 097-2-1:2017 Edition 2.1, UK:G98/G99/1-6:2022, Spain:UNE217001:2020 /UNE217002:2020/NTS V2.1:2021-07,IEC61727:2004/IEC62116:2014/IEC61683:1999,Hungary:EN50549-1:2019/RFG:2016/Hungary |
|||||||||
| Safety Regulation | IEC/EN62109-1:2010, IEC/EN62109-2:2011 | |||||||||
| Display and communication | ||||||||||
| Model | SF-KH3 | SF-6KH3-P | SF-8KH3 | 5F-8KH3-P | SF-10KH3 | SF-10KH3-P | SF-12KH3 | SF-12KH3-P | R15KH3 | SF-15KH3 |
| HMI | LCD;APP | |||||||||
| BMS | RS485,CAN | |||||||||
| EMS/Meter | RS485/RS485 | |||||||||
| Supported Communication Interface |
WIFI / GPRS | |||||||||
| Input DC(PV) | ||||||||||
| Model | SF-KH3 | SF-6KH3-P | SF-8KH3 | 5F-8KH3-P | SF-10KH3 | SF-10KH3-P | SF-12KH3 | SF-12KH3-P | R15KH3 | SF-15KH3 |
| Max.PV Input Power (kW) | 9 | 9 | 12 | 12 | 15 | 15 | 18 | 18 | 22.5 | 22.5 |
| Max. PV Voltage (V) | 1.000 | |||||||||
| MPPT Voltage Range (V) | 180~850 | |||||||||
| Full Power MPPT Voltage Range (V) |
250~850 | 250~850 | 330~850 | 330~850 | 430~850 | 430~850 | 510~850 | 510~850 | 620~850 | 425~850 |
| Start-up Voltage (V) | 125 | |||||||||
| Max.input Current Per MPPT (A) |
13/13 | 16/16 | 13/13 | 16/16 | 13/13 | 16/16 | 13/13 | 16/16 | 13/13 | 20/20 |
| Max. Short-circuit Current (A) |
16/16 | 25/25 | 16/16 | 25/25 | 16/16 | 25/25 | 16/16 | 25/25 | 25/25 | 30/30 |
| Number of MPPT Rackers | 2 | |||||||||
| MPPT Number/ Max. lnput Strings Number |
1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 2/2 |
| Rated input Voltage (V) | 700 | |||||||||
| AC Output Data(on-grid) | ||||||||||
| Model | SF-KH3 | SF-6KH3-P | SF-8KH3 | 5F-8KH3-P | SF-10KH3 | SF-10KH3-P | SF-12KH3 | SF-12KH3-P | R15KH3 | SF-15KH3 |
| Nominal output Power to Grid (kVA) |
6 | 6 | 8 | 8 | 10 | 10 | 12 | 12 | 15 | 15 |
| Max. Apparent Power to Grid (kVA) |
6.6 | 6.6 | 8.8 | 8.8 | 11 | 11 | 13.2 | 13.2 | 16.5 | 16.5 |
| Max. Apparent Power from Grid (kVA) |
13.2 | 13.2 | 17.6 | 17.6 | 22 | 22 | 26.4 | 26.4 | 33 | 33 |
| Max. Apparent Current from Grid (A) |
19.1 | 19.1 | 25.5 | 25.5 | 31.8 | 31.8 | 38.2 | 38.2 | 47.6 | 47.6 |
| Nominal Output Current to Grid (A) |
8.7 | 8.7 | 11.5 | 11.5 | 14.4 | 14.4 | 17.3 | 17.3 | 21.7 | 21.7 |
| Max. Output Current to Grid (A) |
9.5 | 9.5 | 12.7 | 12.7 | 15.9 | 15.9 | 19.1 | 19.1 | 23.8 | 23.8 |
| Nominal Grid Voltage (V) | 380/400，3W+N+PE | |||||||||
| Nominal Grid Frequency (Hz) | 50/60 | |||||||||
| THDi | <3% | |||||||||
| Battery | ||||||||||
| Model | SF-KH3 | SF-6KH3-P | SF-8KH3 | 5F-8KH3-P | SF-10KH3 | SF-10KH3-P | SF-12KH3 | SF-12KH3-P | R15KH3 | SF-15KH3 |
| Max.Charging / Discharging Power (kw） |
6.6 | 6.6 | 8.8 | 8.8 | 11 | 11 | 13.2 | 13.2 | 16.5 | 16.5 |
| Battery Voltage Range (V) | 125~600 | |||||||||
| Battery Working Voltage Range (V） |
150~550 | |||||||||
| Max.Charging/ Discharging Current (A) |
50 | |||||||||
| Rated.Charging/ Discharging, Current (A) |
40 | |||||||||
| BatteryType | Lithium and Lead Acid Battery | |||||||||
| EPS Data(back up) | ||||||||||
| Model | SF-KH3 | SF-6KH3-P | SF-8KH3 | 5F-8KH3-P | SF-10KH3 | SF-10KH3-P | SF-12KH3 | SF-12KH3-P | R15KH3 | SF-15KH3 |
| Nominal Output Power (kVA) |
8 | 8 | 8 | 8 | 10 | 10 | 12 | 12 | 15 | 15 |
| Max. Apparent Power (kVA) |
8.8 | 8.8 | 8.8 | 8.8 | 11 | 11 | 13.2 | 13.2 | 16.5 | 16.5 |
| Nominal Output Current (A) |
8.7 | 8.7 | 11.5 | 11.5 | 14.4 | 14.4 | 17.3 | 17.3 | 21.7 | 21.7 |
| Max.Output Current (A) | 9.5 | 9.5 | 12.7 | 12.7 | 15.9 | 15.9 | 19.1 | 19.1 | 23.8 | 23.8 |
| Nominal Output Voltage (V) |
400, 3W+N+PE | |||||||||
| Nominal Output Frequency(Hz) |
50/60 | |||||||||
| THDu | <2% | |||||||||
| Max.Efficiency | 97.9% | 97.9% | 97.9% | 97.9% | 98.2% | 98.2% | 98.2% | 98.2% | 97.6% | 97.6% |
| Europe Efficiency | 97.2% | 97.2% | 97.2% | 97.2% | 97.5% | 97.5% | 97.5% | 97.5% | 97.8% | 97.8% |
| MPPT Efficiency | 99.9% | |||||||||
| Max.Battery Charge/ Discharge Éfficiency |
97.5% | 97.5% | 97.5% | 97.5% | 97.5% | 97.5% | 97.6% | 97.6% | 97.8% | 97.8% |
