Portable Off-Grid Solar Power System
CI New Energy offers advanced portable off-grid solar power systems. As manufacturers, we provide high-quality solutions for wholesale needs.
Send Inquiry
Product Description

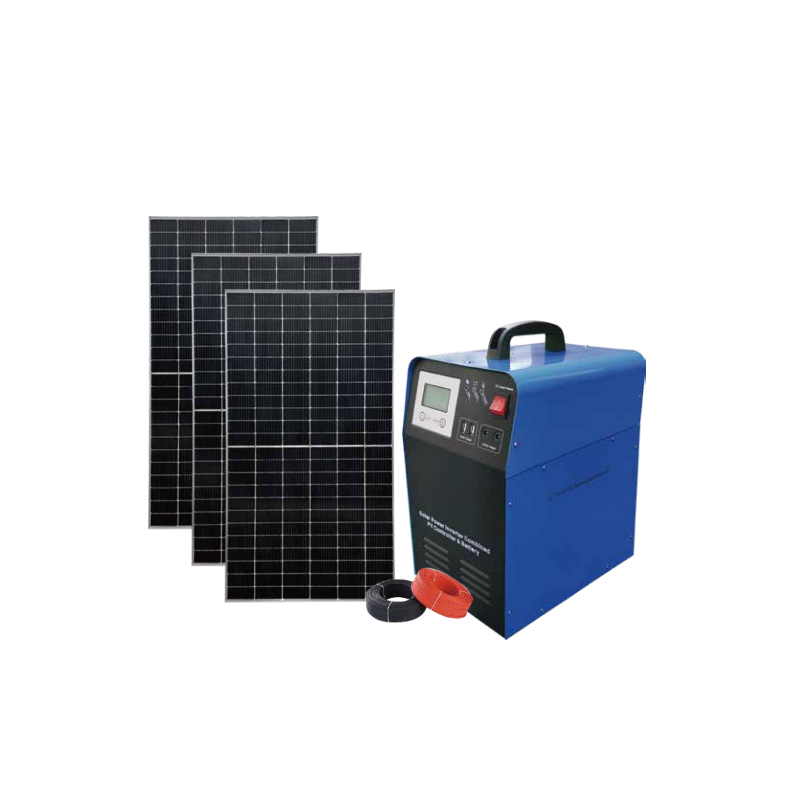

Portable Off-Grid Solar Power System
Features:
· Excellent performance because of an MCU Intelligent control technology;
· A wide range of applicable loads because of pure sine wave AC output;
· Convenient and practical 5VDC USB output port and 12vDC output port;
· Solar array and battery common-anode systern input;
· Charge by mains supply for flexible configuration(optional function);
· Overcharge protection and over discharge protection for a longer battery life;
· LCD and LEDS for visualization of operation status of the equipment Overall automatic protection and alarms Including AC output over load protection, short circuit protection ,etc .
Technical Data:
| Model: AL | 0.3KW/12V | 0.5KW/12V | 1KW/12V | 1KW/24V | 1.5KW/24V |
| Inverter | |||||
| Battery voltage | 12V | 24V | |||
| In-built battery specification | 1*55AH/12V | 100AH/12V | 2*55AH/12V 2*100AH/12V |
2*100AH/12V | |
| Rated power | 300W | 500W | 1000W | 1000W | 1500W |
| Output voltage | 110/220VAC | ||||
| Output frequency | 50/60Hz | ||||
| Output waveform | Pure Sine Wave | ||||
| Charge by a mains supply | |||||
| Input voltage | 110/220VAC---*("*" means an optional function) | ||||
| Charge current | 10A(MAX)---*("*" means an optional function) | 10A(MAX)---*("*" means an optional function) | |||
| Solar input | |||||
| Maximum photovoltaic voltage(VDC) | ≤25V | ≤50V | |||
| Charge voltage(VDC) | 10-25V | 20-50V | |||
| Rated charge current(A) | 30A | ||||
| Maximum power(Wp) | 360Wp | 720WP | |||
| Voltage of overcharge protection(VDC) | 14.2V | 28.4V | |||
| Voltage of overcharge recovery(VDC) | 14.0V | 28.0V | |||
| Voltage of floating charge(VDC) | 13.7V | 27.4V | |||
| DC output | |||||
| Voltage of high-voltage protection(VDC) | 16V | 32V | |||
| Voltage of high-voltage recovery(VDC) | 15.2V | 30.4V | |||
| Voltage of low-voltage recovery(VDC) | 12.6V | 25.2V | |||
| Voltage of low-voltage protection(VDC) | 11V | 22V | |||
| 5VDC USB output port | 2 ones/MAX 2A | ||||
| 12VDC output port | 2 DC ports + backboard 12V terminal block (MAX 8A) | ||||
| Starting temperature of the exhaust fan | >45℃ | ||||
| Ambient temperature for operation | 0-40℃ | ||||
| Ambient temperature for storage | -25-+55℃ | ||||
| Operation/storage conditions | 0-90% (no condensation) | ||||
| External dimensions: DxWxH (mm) | 343 x 225 x 443 | 423x260 x453 | 513x310x493 | ||
| Packing dimensions: DxWxH (mm) | 420x290 x490 | 520x370x520 | 610x420x550 | ||

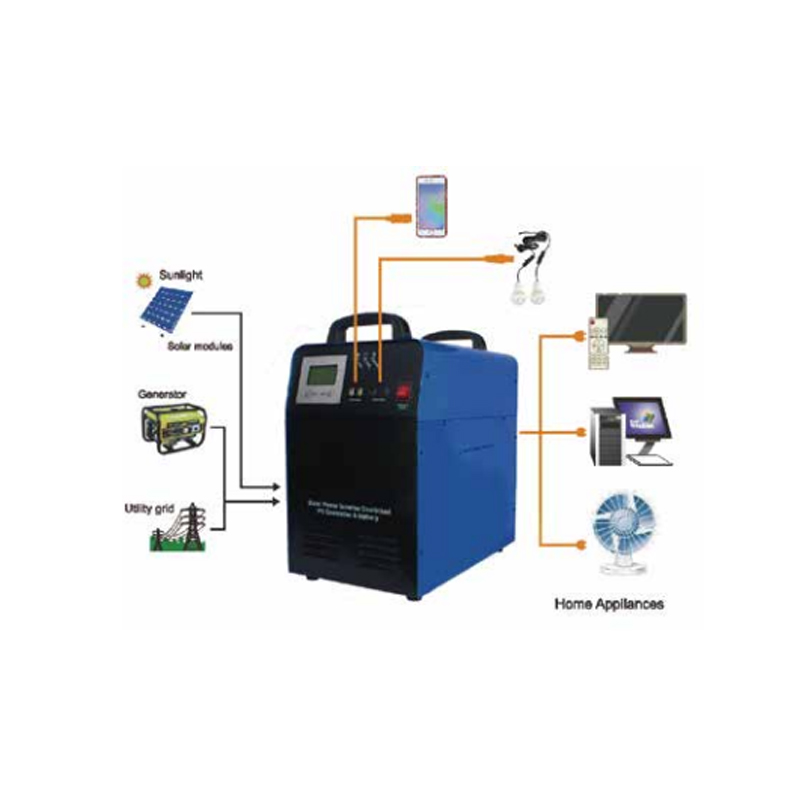

Application:
