Half-cell High Eﬃciency Mono Solar Panels

Product Description

High Eﬃciency Mono Solar Panels

Half-cell High Efficiency Mono Solar Panels use advanced technology to provide half-cell monocrystalline solar panels with high-efficiency characteristics. Optimized design reduces energy loss, improves power generation efficiency, and is suitable for various environmental conditions. Superior performance and reliability make it the solar solution of choice.

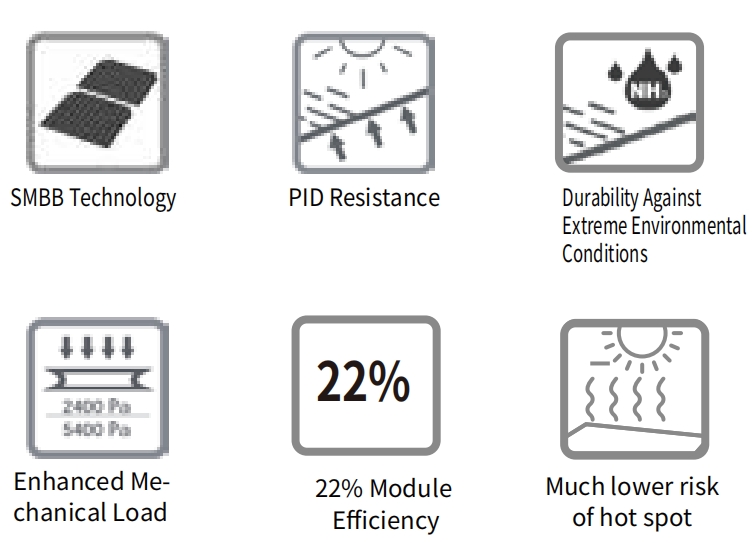

Key Features:

Half-cell High Eﬃciency Mono Solar Panels

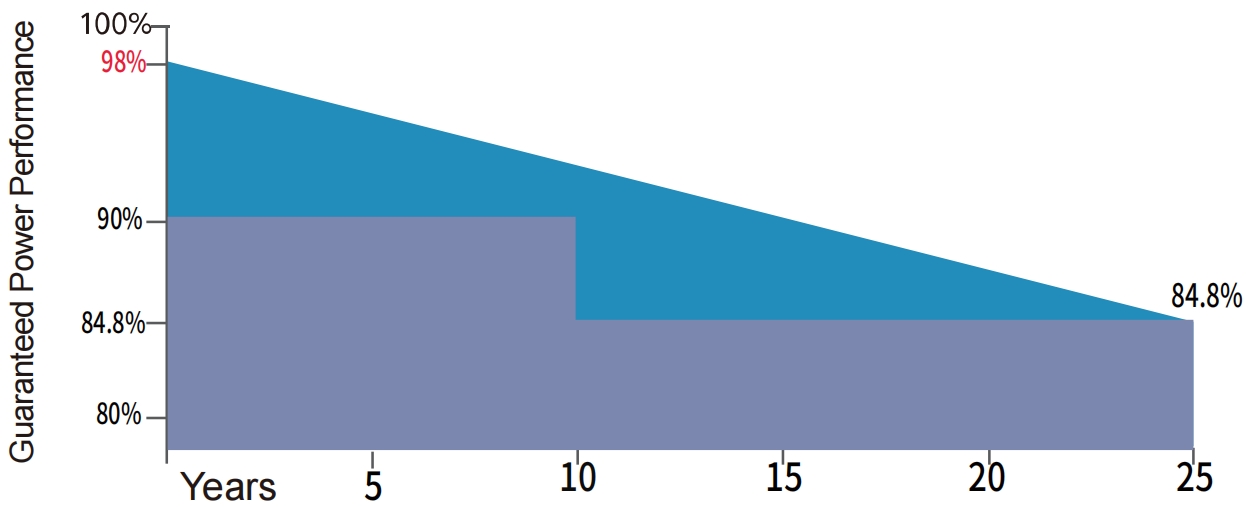

LINEAR PERFORMANCE WARRANTY

12 years minimum 92% power output
25 years minimum 84.8% power output
10 years Product warranty on materials and workmanship

Speciﬁcation

Cell Type	Maximum Power(Pmax)	Maximum Power(Pmax)	Maximum Power Current(Imp)	Open-circuit Voltage(Voc)	Short-circuit Current(Isc)	Weight	Dimension	Module Efficiency
	600W	46.64V	12.86A	54.67V	13.62A	30kg	2464x1134x35mm	21.50%
182mm	550W	41.97V	13.11A	49.95V	14.05A	28.5kg	2279x1134x35mm	21.30%
	540W	41.62V	12.98A	49.55V	13.89A	28.5kg	2279x1134x35mm	21.10%
	500W	38.33V	13.05A	45.65V	13.92A	26.2kg	2094x1134x35mm	21.10%
	460W	34.67V	12.98A	41.25V	13.89A	23.9kg	1909x1134x30mm	21.20%
	400W	36.96V	13.06A	36.96V	13.82A	20.9kg	1722x1134x30mm	20.50%
166mm	400W	34.2V	11.7A	41.5V	12.3A	20kg	1755x1038x30mm	21.96%
166mm	450W	41.6V	10.81A	48.9V	11.46A	24kg	2094x1038x35mm	20.70%
